1-1/2" Grab Bar Set for ADA and ICC/ANSI Compliance
Cheapest shipping from $16.31
SKU: GBS123
Stock Status:
10 pcs
Delivery Status: Phoenix Metro
Same Day Courier Between -7am-6pm
Description

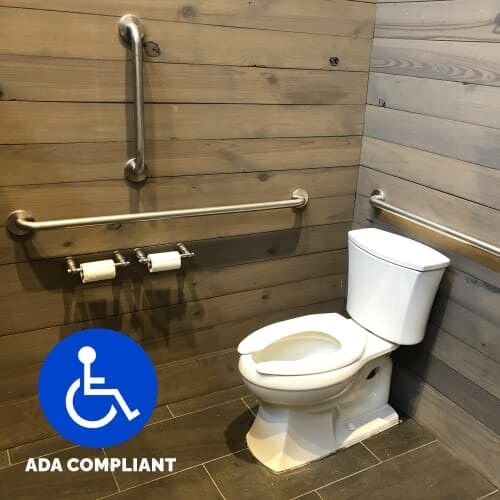

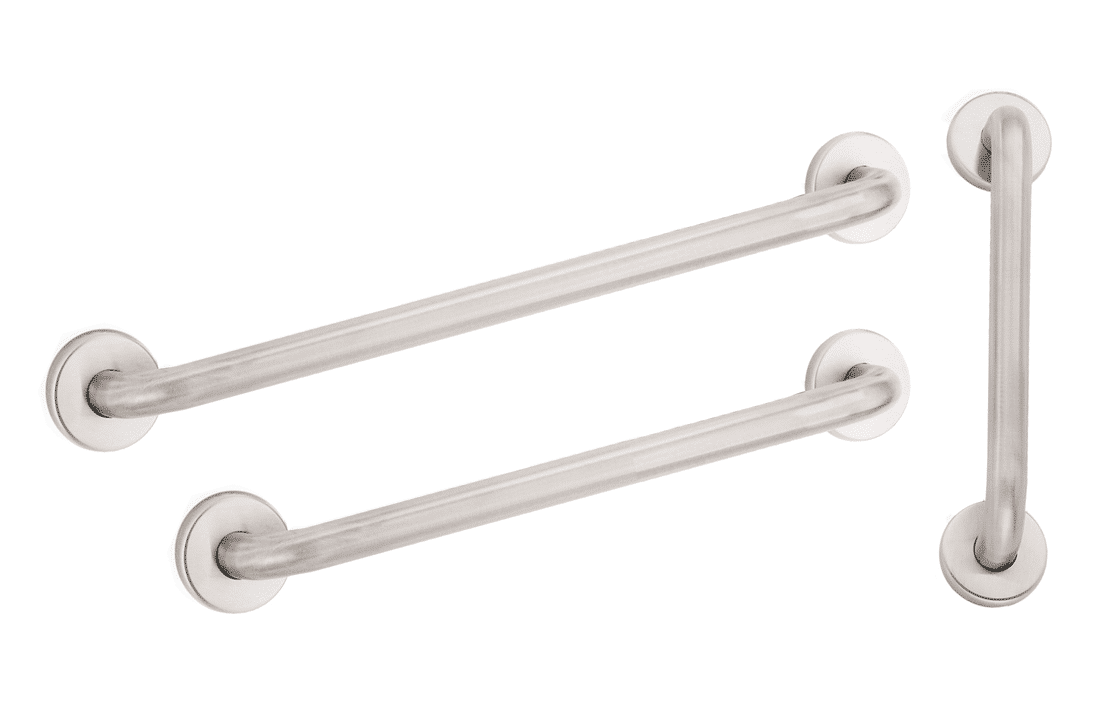

(1) 36″ straight grab bar and (1) 42″ straight grab bar
(1) 18″ straight grab bar, (1) 36″ straight grab bar, and (1) 42″ straight grab bar
(2) 42″ straight grab bars
(2) 18″ straight grab bars and (2) 42″ straight grab bars
All included grab bars are manufactured from satin finish stainless steel tubing. The bars have a 1 ½” outside diameter.
Technical Data
| Tubing is 18-8 S, | |
|---|---|
| type 304, 18 gauge stainless, while the concealed mounting flanges are 18-8 S, type 304, 11 gauge stainless. | |
| Snap covers are 18-8 S, type 304, 22 gauge stainless. | |
| Clearance (inside bar to wall distance) is 1 ½” (38mm) | |
| Can support loads exceeding 500 lbs when installed per recommendations | |
| Included covers “snap” over flanges to conceal mounting fasteners |
